Oral Screening Device

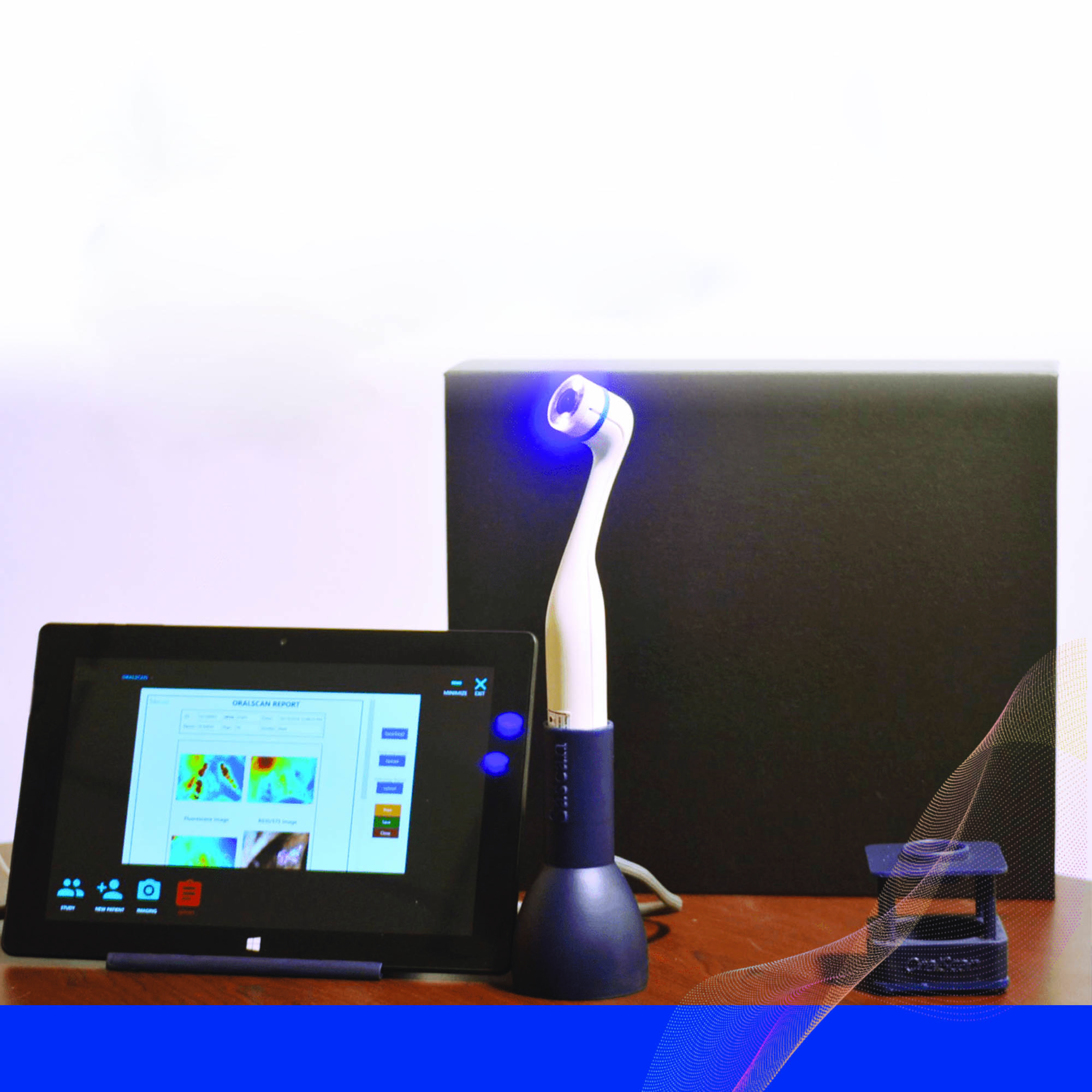

It is a portable, handheld device designed for real-time screening and location of early cancerous lesions in the oral cavity.

Features and Specifications:

  • 5MPx monochrome camera for high-resolution imaging.
  • 405nm LED light for PpIX fluorescence intensity detection.
  • Map changes in HbO2 absorption intensity at 545 nm and 575 nm.
  • EMCCD camera-based DR imaging for pathological data correlation.
  • Employs LEDs emitting at specific wavelengths (405nm, 545 nm, and 610 nm) for illumination.
  • Multimodal imaging captures biochemical changes in squamous epithelial tissues.
  • Detects changes in protoporphyrin IX (PpIX) fluorescence and oxygenated hemoglobin (HbO2) concentration.
  • Display of processed images through pseudo color maps (PCM) for tissue autofluorescence and HbO2 absorption.
  • Marks the most malignant site for biopsy, reducing the need for multiple biopsies.

  • Technology is patented in India with pending patents in the US and EU.
  • Manufactured in an ISO 13485:2016 certified facility.
  • Approved by the office of the Drugs Controller in India (CDSCO) for CE marking.

  • Clinical studies conducted at Regional Cancer Centre (RCC), Trivandrum, Govt. Dental College (GDC), Trivandrum, and SUM Hospital Bhubaneswar.
  • Diagnostic accuracy compared with diffuse reflectance (DR) and autofluorescence techniques.

  • Bimodal imaging device for screening and detecting oral potentially malignant diseases (OPMD).
  • Discriminates malignant sites from normal using a pseudo color map (PCM).
  • Reduces false negatives, multiple biopsies, and treatment costs.

  • Handheld, portable device connected to the USB port of a 64-bit Windows Tablet or Laptop.
  • Proprietary software installed on the connected device.
  • Cloud access provided through internet connectivity for data storage and analysis.

  • Intuitive and user-friendly software for ease of operation.
  • Suitable for operation by health workers and use in primary health centers and screening camps.

  • Can be operated in villages and remote locations with limited access to electricity and healthcare.
  • Installation in predefined locations with kiosks for easy access.
